LED Full Color Controller RJ-FSD-1000D

• First, Overview：

• Inside the pattern 102，then control can be equipped with SD (<4G).

• Call internal pattern afterthe boot without SD ,calling SD of animation effect after the boot with SD。RJ-FSD-1000D can send DMX512 & TTL signal。

• using standard DMX512 choose built-in patterns speed and R G B/RGBW。

• Can be more than one, the synchronization signal recommend no more than 50 meters, measured 100 meter.

• The maximum drive 2048 pixels. The maximum refresh rate of 30 frame rate(<512 pixels)。

• The maximum distance between the controller and lighting TTL is <15m;485 signal <30 meters TTL simultaneously and then 10 or so pieces。

Second, support IC：

Three, automatic discriminant SD card or internal pattern

Boot automatically when judging whether a card, a card call SD pattern, no card automatically calls the internal pattern.

• pattern & speed.

1

查看图片或资源 / Open resource

2

查看图片或资源 / Open resource

• under the SD card status ,you can select the pattern and speed through the key, where [on/off]key is invalid. No card and other operations ,as detailed below.

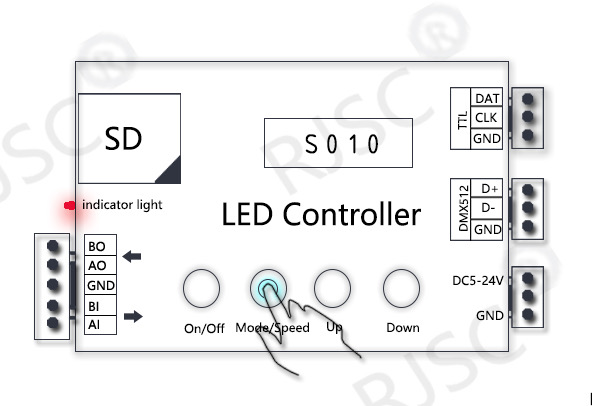

• Press[mode/speed]Th second key to cycle through S001 and P001,S beginning representative rate, P beginning representative pattern (Figure 1),

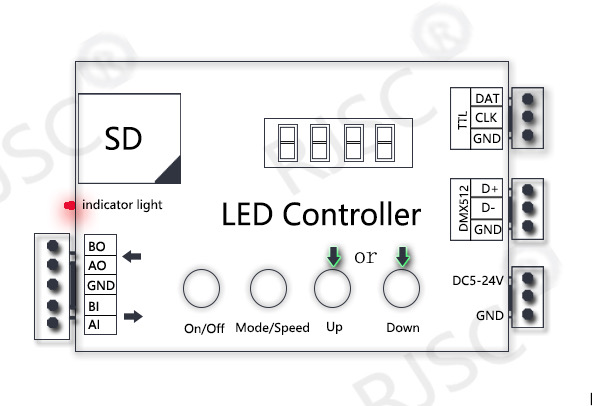

this time through the [UP] and [DOWN] to increase or decrease.

• Press the second button [MODE/SPEED} to display A000,A representative DMX512 address, attention DMX address decode and use only standard DMX512 console

control only useful built-in patterns. Increases and decreases with the UP and DOWN keys.

• Wiring

1. WS2811/2812 UCS1903/2903 SM16703 TM1803/1804/1812 etc. (TTL single wire lamp)

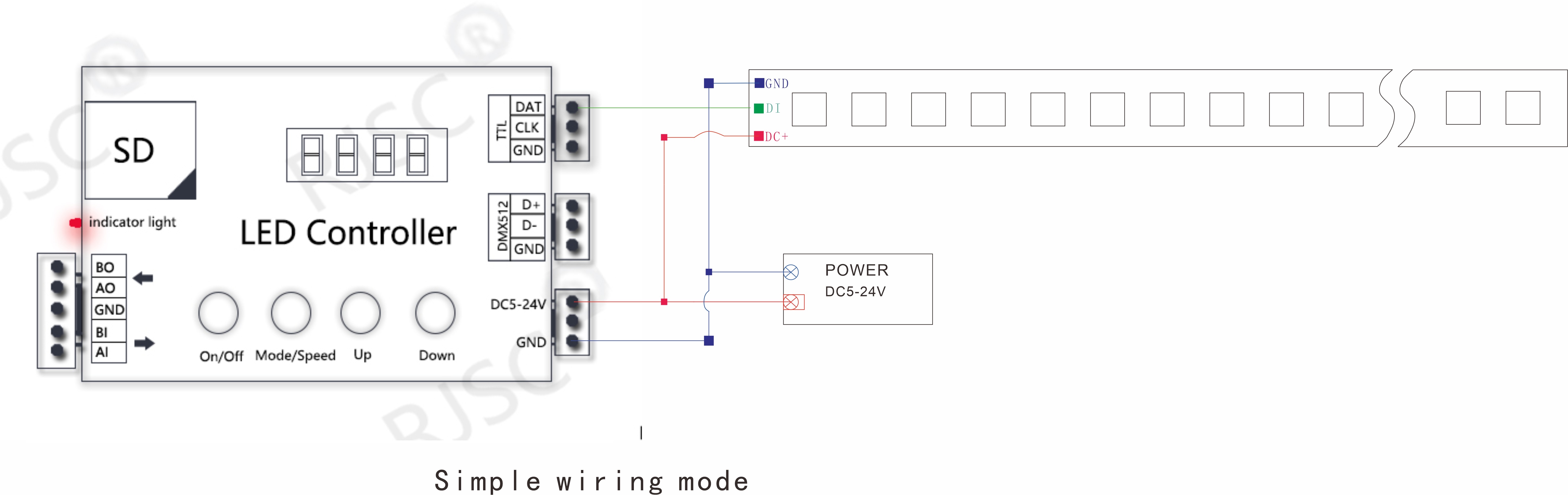

Simple wiring mode

查看图片或资源 / Open resource

Standard wiring

查看图片或资源 / Open resource

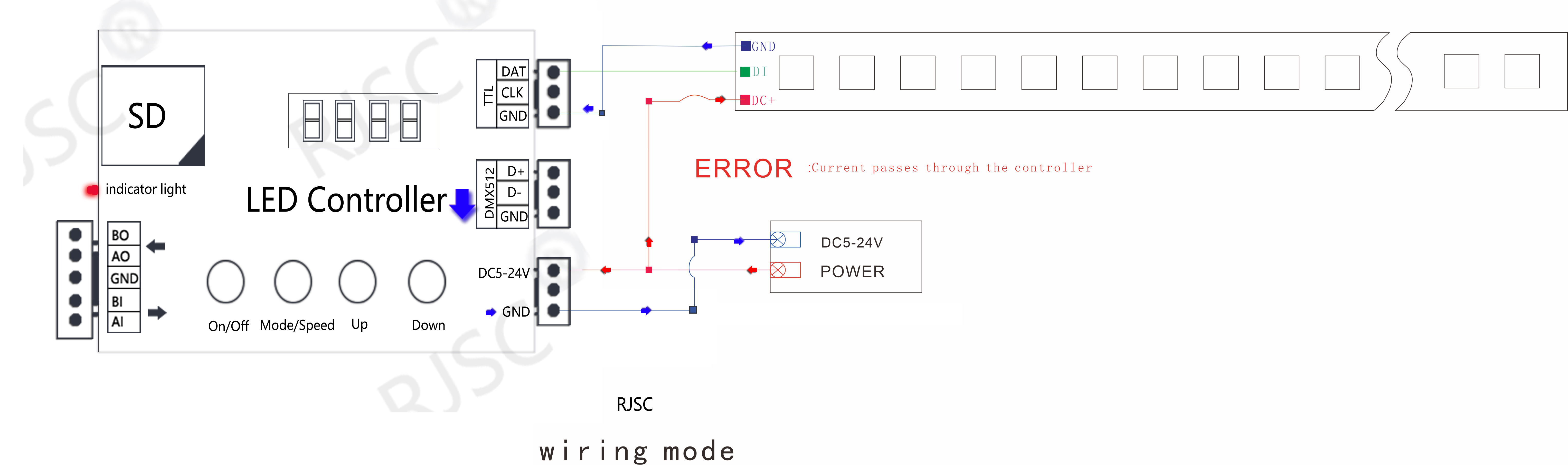

[error]

查看图片或资源 / Open resource

• Multiple controller for synchronous operation

1

查看图片或资源 / Open resource

2

查看图片或资源 / Open resource

TTL: single-and two-wire signal interface.

DAT: Data

CLK: Clock

GND: Signal ground

DMX512: selected models DMX512 DMX 512 signal is sent, the differential signal is sent when the other models; board with 485 receiving the signal transmitted farther.

D+: DMX512 signal A

D-: DMX512 signal B,

GND: normal circumstances without wiring.

• Internal pattern instructions

• Election IC Type(Built-in mode only):

1

查看图片或资源 / Open resource

2

查看图片或资源 / Open resource

• First press the [ON/Off] key to display OFF enter programming mode(Figure 1)

• Then press the[Mode/Speed] Select (Figure 2),

choose the right model and then take [On/Off] key to exit.

• Control points set(Built-in mode only)

1

查看图片或资源 / Open resource

2

查看图片或资源 / Open resource

First press the [ON/OFF] key to enter the programming screen display OFF state.

[UP]and[DOWN] set points.

Then[On/Off] key to exit.

• DMX512

1. A DMX512 console controls the internal patterns or SD card patterns of the RJ-FSD-1000B. Multiple units can be used synchronously, and the wiring should be connected to the first unit.

2. The controller occupies 5 DMX512 channels.

   Channel 1: Pattern

   Channel 2: Speed

   Channels 3–5: RGB brightness values.

3. The pattern step value is 2. The first pattern is 0–1, the second pattern is 2–3… the Nth pattern is (N-1)–N.

4. The controller’s default DMX512 address is A000. Press and hold the second Mode/Speed button to display it, then press UP or Down to set it.

   Address (A), occupied channels are A-(A+5), 5 channels in total.

   For example:

   A000 occupies DMX512 CH 1–5

   A001 occupies CH 2–6
